5" Quad Specs

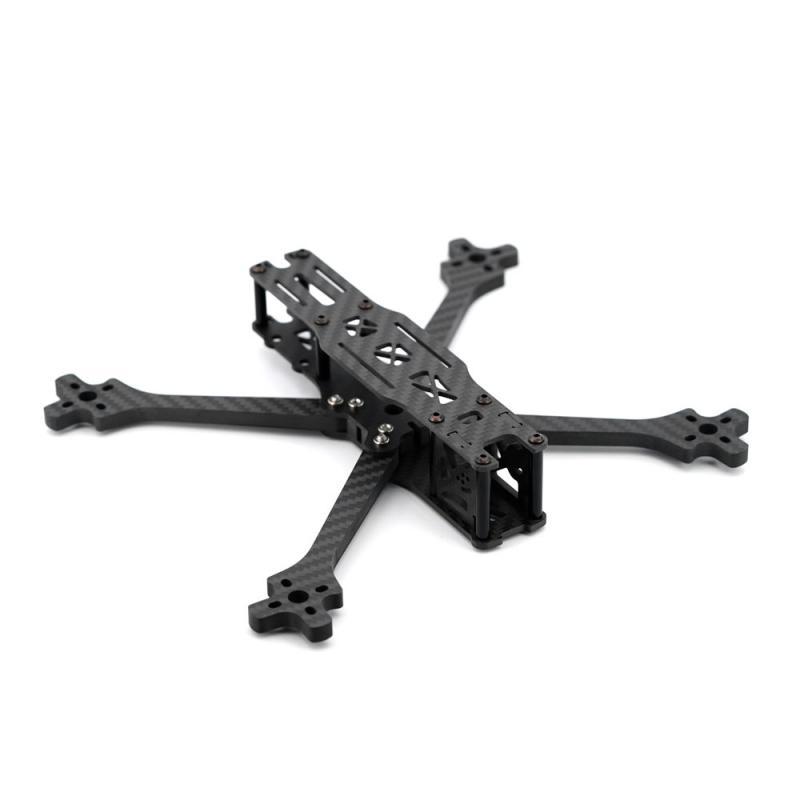

TBS Source One v5 Frame:

Brand: TBS Source One v5

Wheelbase 5": 226

Top Plate: 2mm

Middle Plate: 2mm

Bottom Plate: 2.5mm

Arms Spacer: 6mm

Camera plate: 2mm

Standoff height: 30 and 22mm

Arm thickness 5": 6mm

Stack Mounting: 30.5 × 30.5mm & 20 x 20

Weight 5": *123.5g

Support camera: 19mm

Mamba MK4 F722 APP Flight controller:

MAMBA MK4 F722APP

MCU: 216MHz STM32F722

GYRO: MPU6000

Target：MAMBA F722_2022A

OSD: Yes

Blacbox: 16M Flash Memory

Barometer: SPL06

Uarts: 6Set

I2C: Yes

F.Port: Yes

RSSI: No

Buzzer Pad: Yes

CURR Pad: Yes

ESC Signal: 8 Set

ESC Soft: Dshot300/600

ESC Telemetry: Yes

Power Led: Yes

LED Controller:BF LED/MB LED

AIR UNIT Port: Yes

WIFI: SpeedyBee APP

VTX Switch: Yes

Receiver Protection: Yes

BEC  Protection: Yes

TVS Protection: Yes

BEC:3.3V 0.5A&  5V 3A& 9V 3A

Input voltage:  4~6S Lipo（16.8~25.2V)

Mounting size: 30.5mm/M3

Onboard 4in1 ESC

MCU upgraded to EFM8BB21
Power supply: 2-4S LiPo/LiPo HV (7v/17v)
Currents: 20A continuous peak 25A (5 seconds)
Support BLHeliSuite programmable
Factory firmware: Bluejay 0.19.2
Firmware target: F_H_40_48_v0.19.2
Default protocol: DSHOT150/DSHOT300/DSHOT600

Emax ECO II Series 2306 1700kv

• Size: 2306
• Kv: 1700
• Mounting holes: 16mm M3
• Steel shaft
• Multi-fiber winding
• Cables: 120mm 20AWG

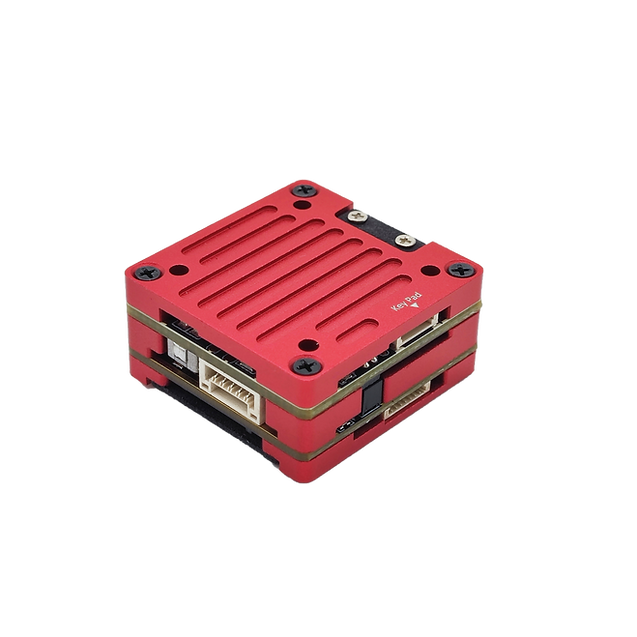

HDZero Freestyle v2 VTX

HDZero Micro V2 Camera

HQ Freestyle Prop 5X4.3X3V2S

Propeller Diameter: 5 inch
